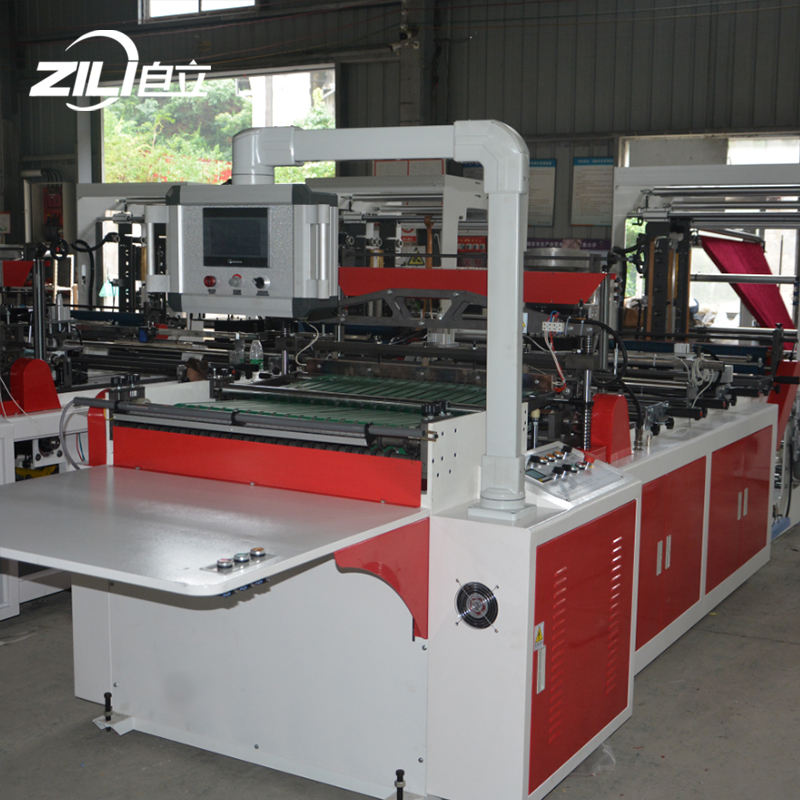

制袋机2

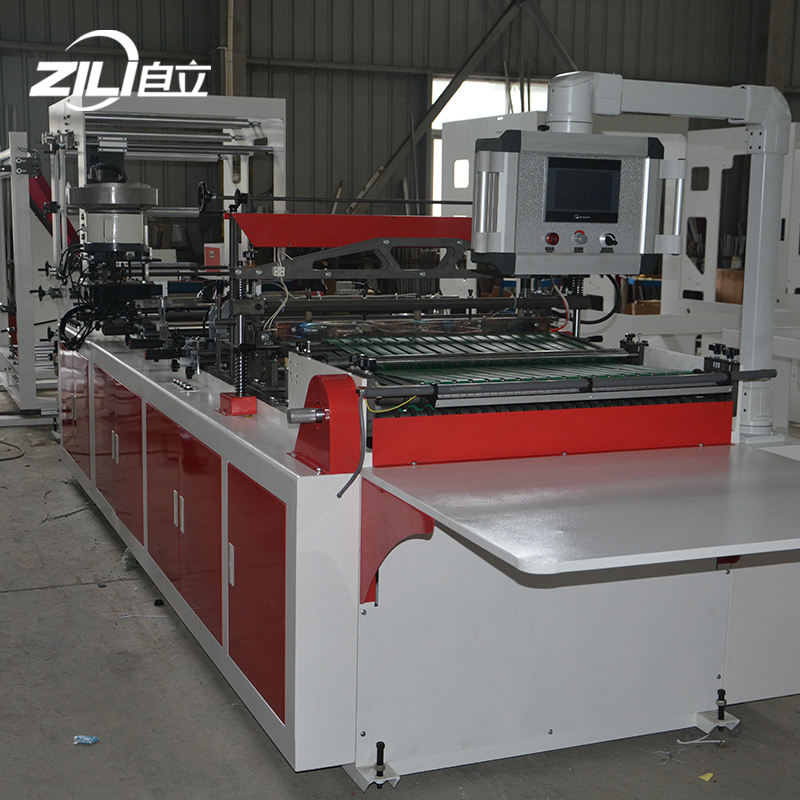

制袋机3

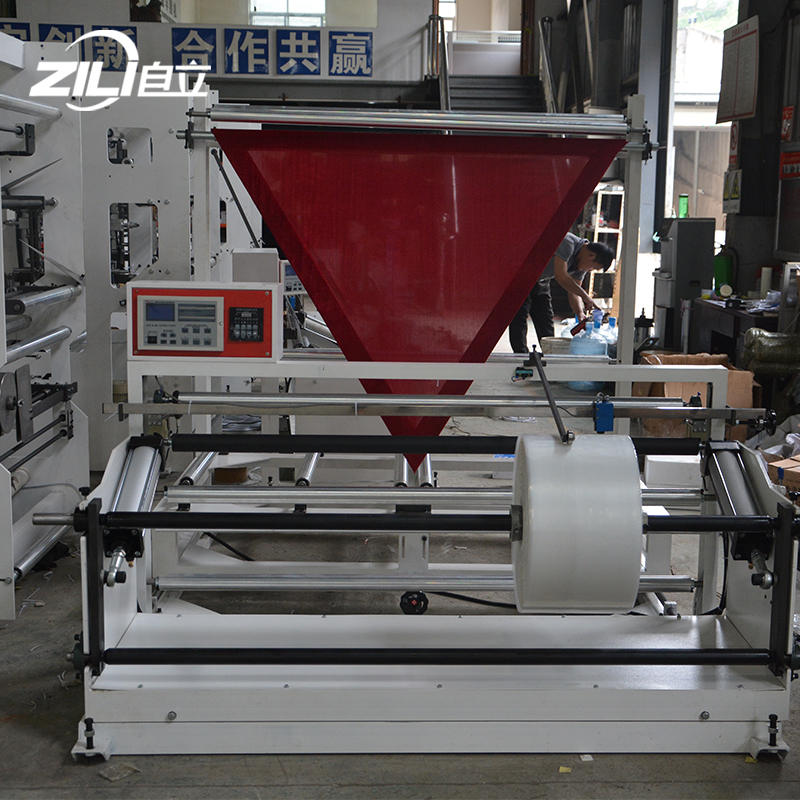

制袋机4
800 Type Vertical Type PE Zipper Bag Making Machine
Products Description

Place of Origin:

Zhejiang,China

Brand Name:

ZL

Model Number:

ZL-800

Certification:

CE

Minimum Order Quantity:

1

Price:

$15000-$20000

Packaging Details:

Pallet

Delivery Time:

15 days

Payment Terms:

TT/LC/DP

Supply Ability:

3 SETS/month

Description:
Main uses of the equipment:
The clip-chain thermal sealing bag making machine is a product independently developed by our factory. It is a multi-purpose machine, which produces various zipper bags, bone bags and garment bags, etc. It mainly solves the problem of multi-color printing of traditional self-sealing bags and the problem that the size of bags is limited by mold.
The main features
1, The machine adopts advanced Taiwan Weilun touch display, advanced PLC computer program, automatic deviation correction control program, the whole machine adopts frequency conversion speed regulation.
2. The machine has the functions of automatic feeding, folding bottom, hot closing of ironing knife, breaking point, punching, ultrasonic welding, high speed automatic pulling up of vibrating plate and so on.
3, The machine has automatic counting, automatic stop when the material is broken, electric eye tracking any length, automatic failure alarm, feeding using photoelectric correction, automatic tension control, etc.
4. The bag making machine automatically pulls up the head, improves the production speed, saves labor and improves the production efficiency

Applications:
Making PE and PP zipper bag

Specifications:
Main technical parameters of automatic pull-up head bag making machine (vertical)

Model

ZL-800

Production Speed

60-135PCS/min

Bag-making width

100-700mm

Bag-making Length

30-700 mm

Thickness

0.03-0.2mm

The speed of slider mounting

80-140pcs/min

Power Supply

220V/380V

Total Power

8.5KW

Overall Dimension(L*W*H)

7500*1500*1900

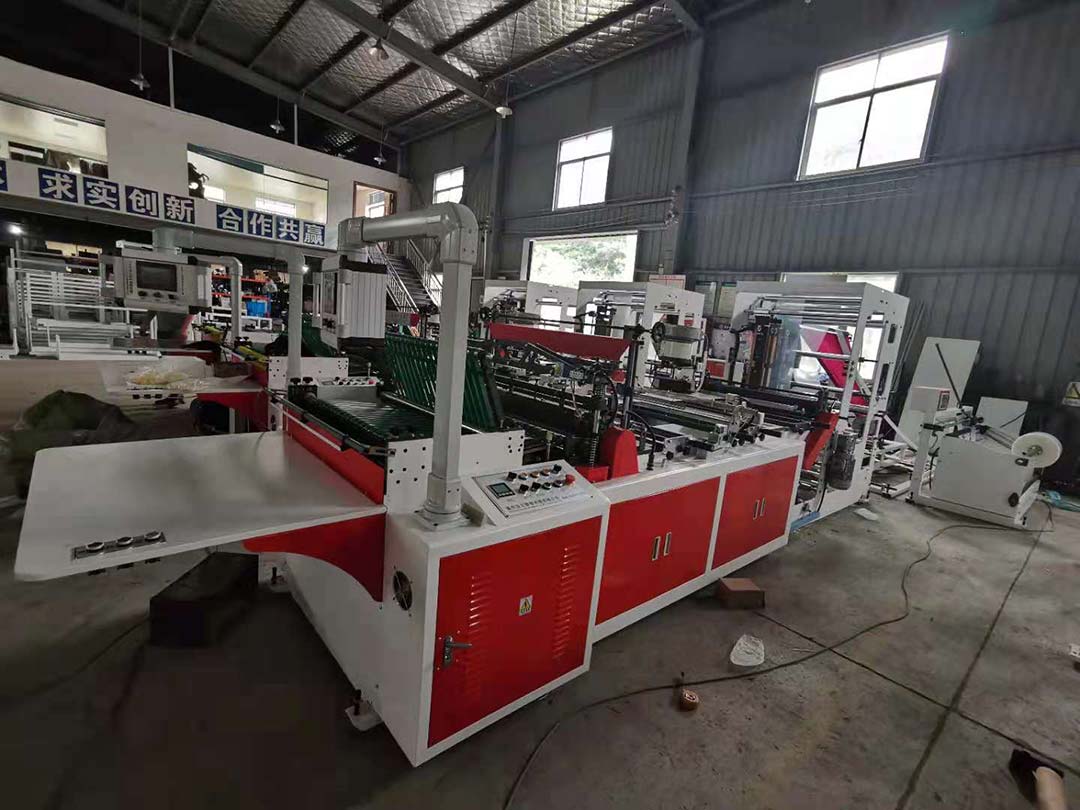

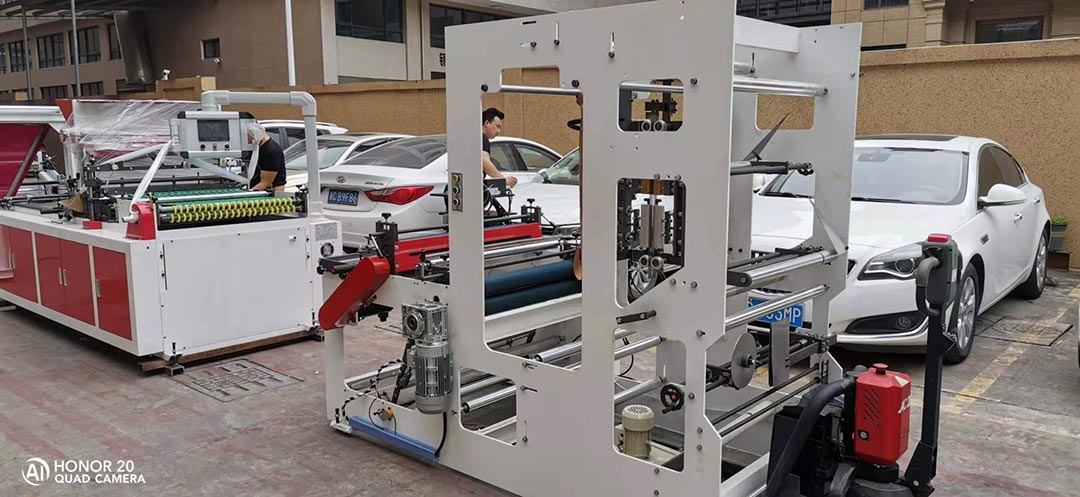

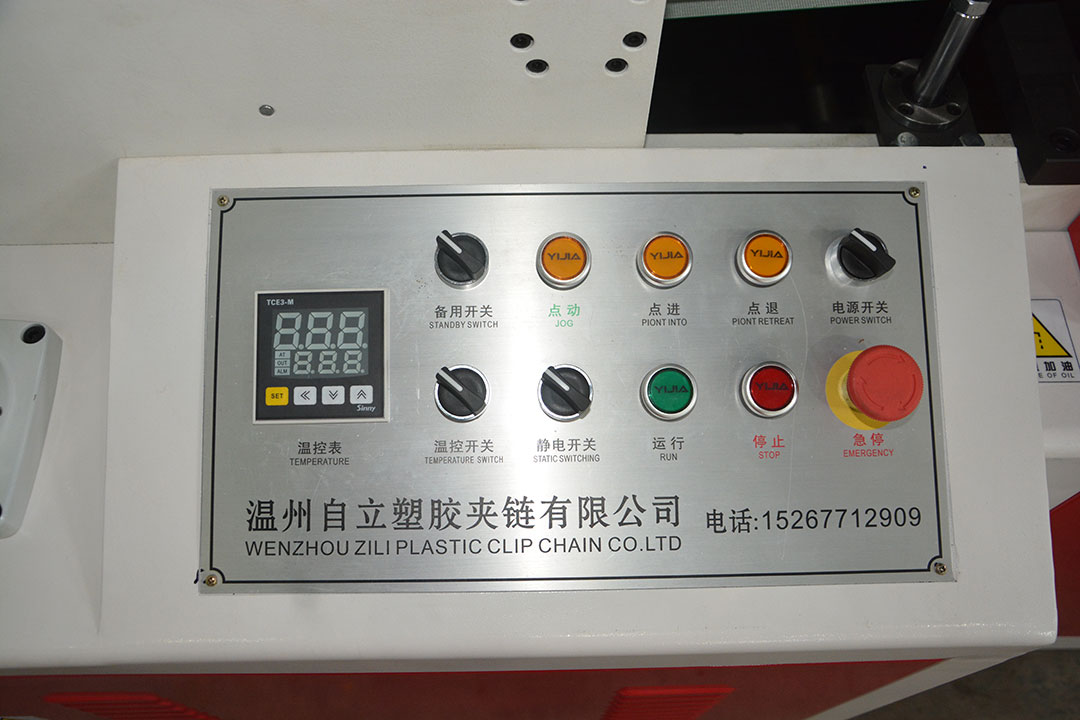

9f2d7707991c2caf0d3eb778a538af6284a617d0f528e445fb2ecab8b7a53fDSC_5936

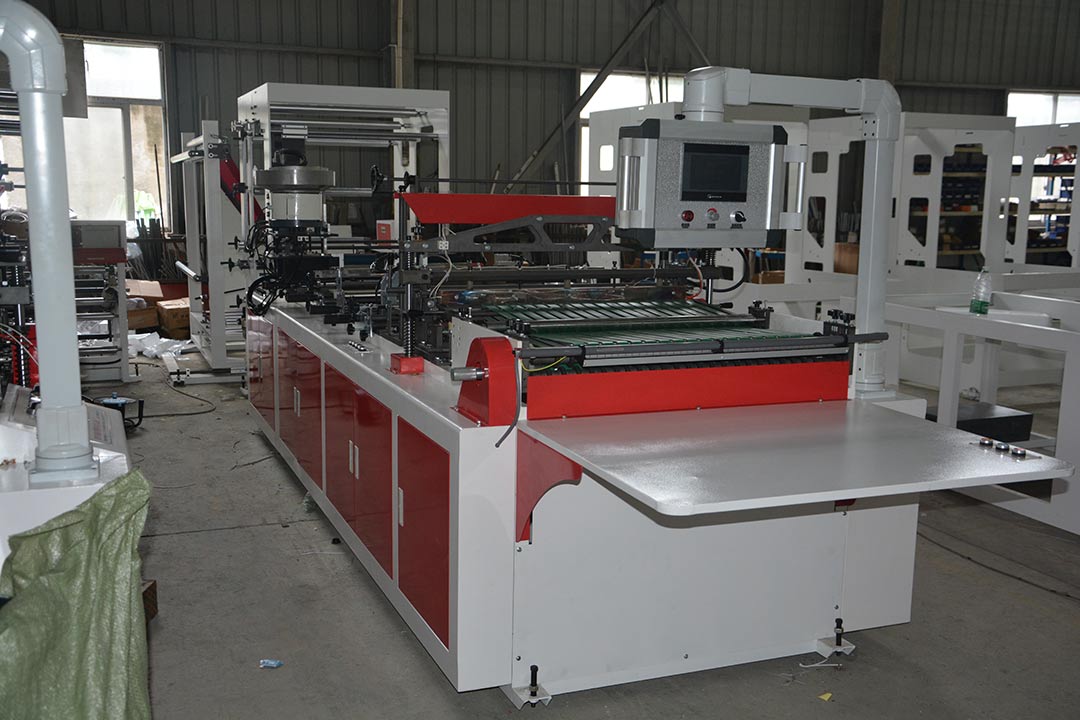

machine-pic

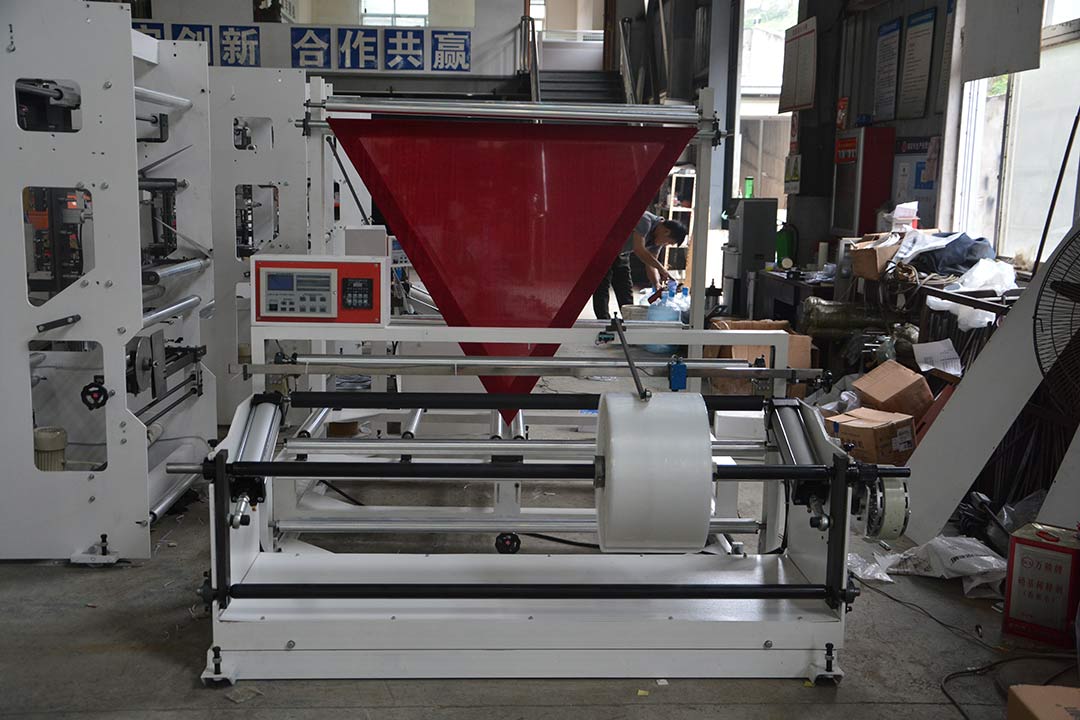

tripod-folding-and-unwinder

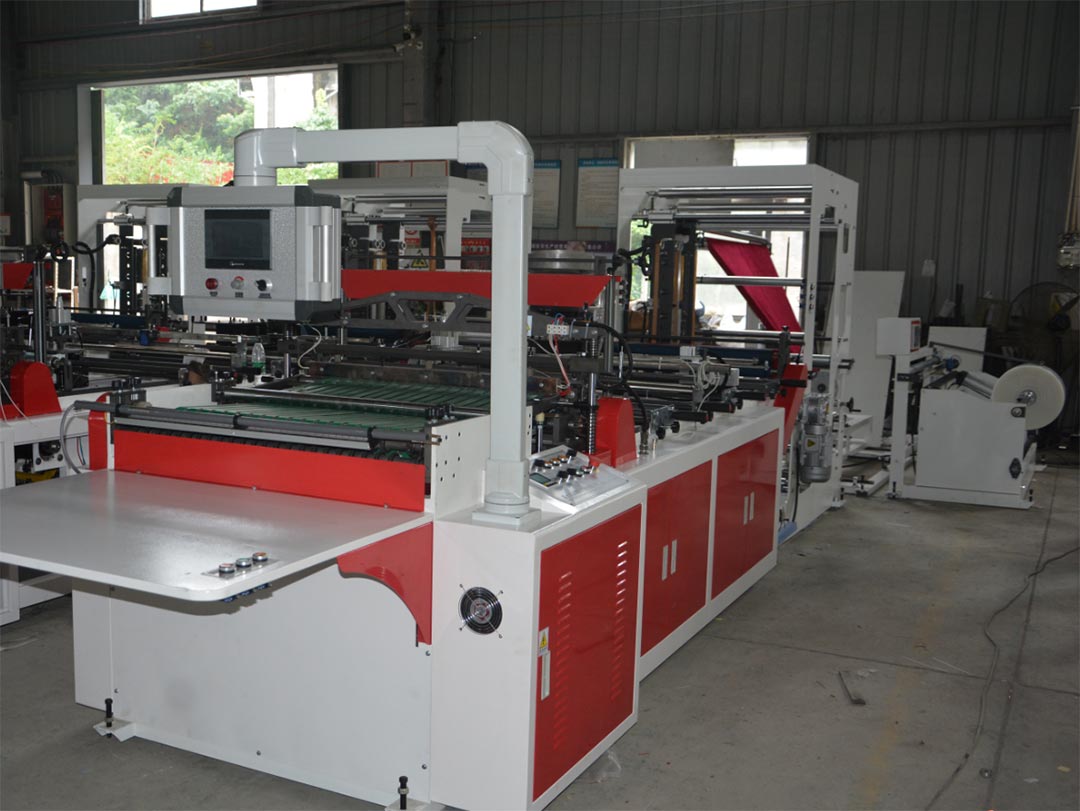

whole-set-machine


Competitive Advantage:
The computer of this equipment adopts the latest upgraded version, the ironing knife is the new ironing knife, the magnetic powder control corrects the deviation, three groups of traction control, the feeding adopts the cylinder automatic feeding equipment, equipped with automatic stop when the material is broken, the zipper knotting automatic stop function, the above functions ensure the speed and stability of the operation of the equipment to the maximum extent, but also easy to operate.
